Factory Lead Time

7 Weeks

Contact Plating

Tin

Mount

Surface Mount

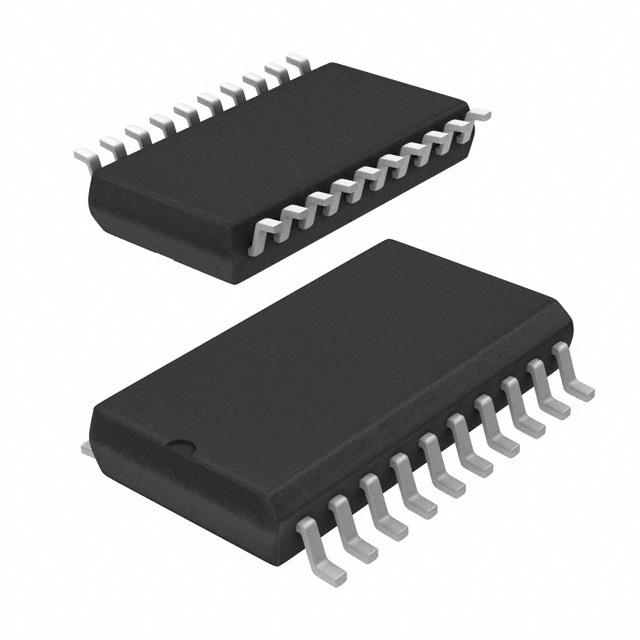

Package / Case

SOIC

Number of Pins

20

Number of Elements

1

Packaging

Rail/Tube

Published

2007

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Additional Feature

WITH DUAL OUTPUT ENABLE

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

5V

Time@Peak Reflow Temperature-Max (s)

30

Pin Count

20

Number of Outputs

8

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Polarity

Inverting

Power Supplies

5V

Temperature Grade

INDUSTRIAL

Max Supply Voltage

5.25V

Min Supply Voltage

4.75V

Load Capacitance

50pF

Number of Ports

2

Number of Bits

8

Propagation Delay

6.2 ns

Quiescent Current

1mA

Family

FCT

Logic Function

Buffer, Inverting

Output Characteristics

3-STATE

Logic IC Type

BUS DRIVER

Max I(ol)

0.064 A

High Level Output Current

-15mA

Low Level Output Current

15mA

Control Type

ENABLE LOW

Length

12.8mm

Height Seated (Max)

2.65mm

Width

7.6mm

Thickness

2.34mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
